Titanium U Bolts, Round Bend
PageView:1029 Category:All Products Industrial Industrial Titanium Fasteners Titanium U Bolts
Titanium U-Bolt
GR1 GR2 GR3 GR5 GR7 GR12, etc.
DIN 3570, ASME B 18.31.5, JIS B 2809, etc.
Metric size Range from DN20 upto DN500
Imperial size Range from 1/4" upto 1"
Available in your requested size.
High strength, Corrosion resistance, Lightweight.

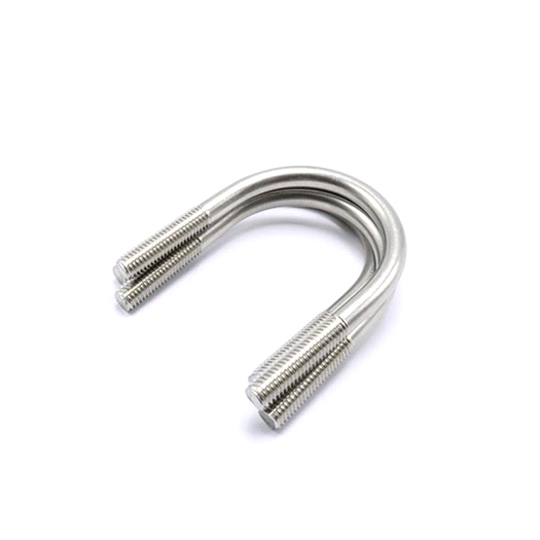

Titanium Round Bend U-Bolts
A U bolt is also called a U bolt clamp or U clamp, it is a threaded u shaped fastener. Titanium U-bolts are manufactured from titanium bars by cold or hot forming methods. Due to corrosion resistant, high strength, long service life, Titanium U Bolts are used as pipe supports in the chemical industry and heavy equipment.
Aerospace Grade Titanium round bars as raw material.
100% Quality control throughout traceability.
Professional experience in manufacturing titanium bolts and screws.
A one-stop solution for all your titanium fastening needs.
Customized Non-standard and special size is available in Titanium according to your drawing or requirement.
Titanium and Titanium alloy U Bolts are widely used in Chemical Industry, Medical Equipment, Shipbuilding, Desalination for sea water, Machining Field, Sports Equipments, Medical Industry, Auto Parts, Aerospace Engineering, Petroleum Exploitation Equipment, Corrosive-resistant equipment etc.
Titanium U-Bolt Dimensions
Size (C x L) | Thread Length (T) | Fits Pipe Size | ||
1/4″-20 (UNC) | ||||
9/16″ | x | 1-3/8″ | 3/4″ | 1/4″ |
3/4″ | x | 1-1/4″ | 3/4″ | 3/8″ |
3/4″ | x | 1-3/4″ | 1″ | 3/8″ |
3/4″ | x | 2-3/4″ | 2″ | 3/8″ |
3/4″ | x | 4-3/4″ | 4″ | 3/8″ |
1″ | x | 1-3/4″ | 1″ | 1/2″ |
1-1/8″ | x | 2-1/4″ | 1-1/4″ | 3/4″ |
1-1/8″ | x | 3-1/2″ | 2-3/4″ | 3/4″ |
1-3/8″ | x | 2-3/4″ | 1-3/4″ | 1″ |
1-3/4″ | x | 2-3/4″ | 1-1/4″ | 1-1/4″ |
2″ | x | 3-1/2″ | 1-3/4″ | 1-1/2″ |
5/16″-18 (UNC) | ||||
1-3/8″ | x | 2-1/2″ | 1-1/4″ | 1″ |
1-3/8″ | x | 3-3/4″ | 2-1/8″ | 1″ |
1-3/4″ | x | 3″ | 1-1/2″ | 1-1/4″ |
1-3/4″ | x | 4-1/4″ | 2-1/2″ | 1-1/4″ |
2″ | x | 3-1/4″ | 1-1/2″ | 1-1/2″ |
2″ | x | 3-11/16″ | 2″ | 1-1/2″ |
2″ | x | 4-11/16″ | 2-3/4″ | 1-1/2″ |
2-1/2″ | x | 3-1/2″ | 1-1/2″ | 2″ |
2-1/2″ | x | 4-3/16″ | 2-1/4″ | 2″ |
2-1/2″ | x | 5-3/16″ | 3″ | 2″ |
3/8″-16 (UNC) | ||||
2″ | x | 3-1/8″ | 1-1/2″ | 1-1/2″ |
2-1/2″ | x | 3-5/8″ | 1-3/4″ | 2″ |
3″ | x | 4-1/8″ | 1-3/4″ | 2-1/2″ |
3-1/2″ | x | 4-5/8″ | 2″ | 3″ |
3-1/2″ | x | 6-1/2″ | 3″ | 3″ |
1/2″-13 (UNC) | ||||
3″ | x | 5″ | 2-1/2″ | 2-1/2″ |
3-1/2″ | x | 5-1/2″ | 2-1/2″ | 3″ |
4″ | x | 6″ | 2-1/2″ | 3-1/2″ |
4-1/2″ | x | 6-1/2″ | 2-1/2″ | 4″ |
