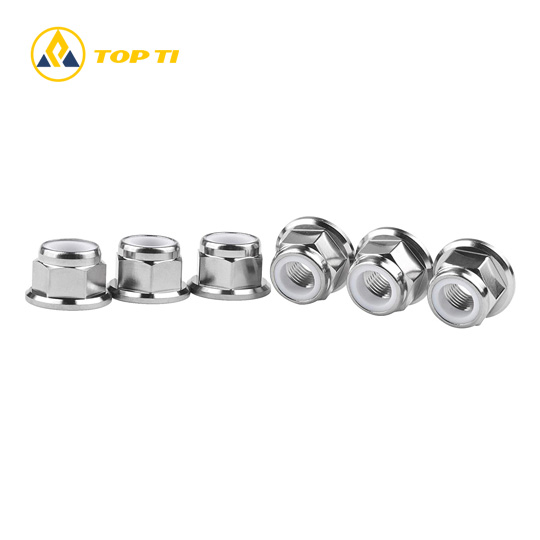

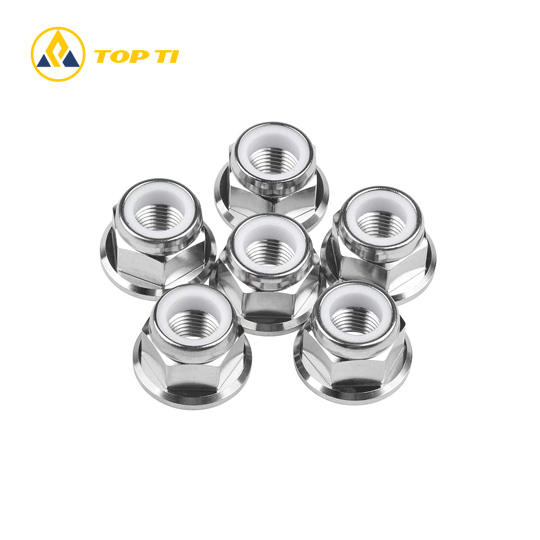

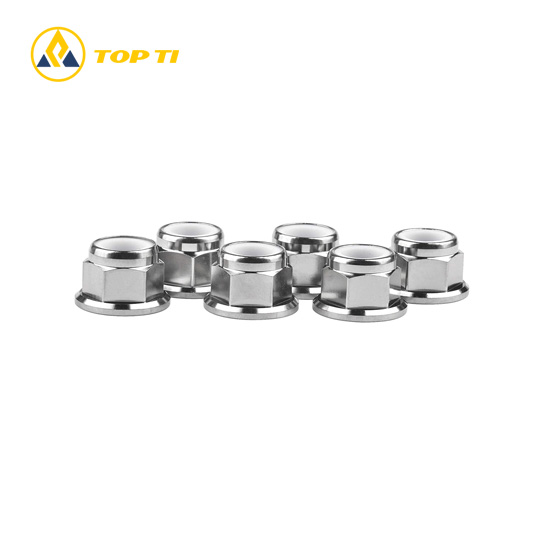

Titanium Flange Nylon Lock Nuts
PageView:1162 Category:All Products Motorcycle Titanium Nylon Lock Nuts

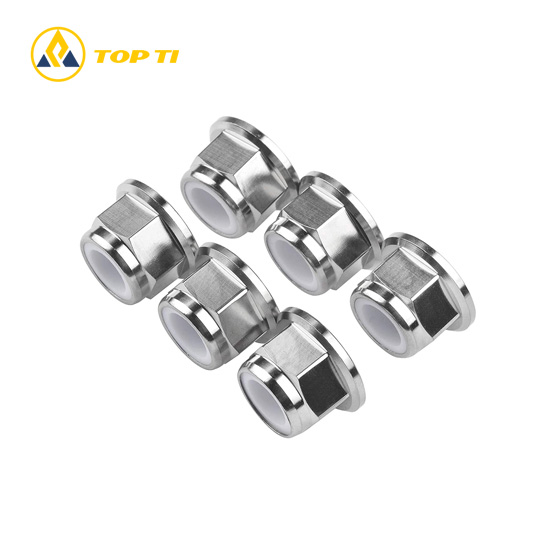

1. Titanium Nylock Hex Head Flange Nut
2. Made from Grade 5 (6AL-4V) Titanium Alloy
3. High toughness, Durable and extremely low wear
4. Ideal for replacing/upgrading standard fasteners
5. Standard: DIN 6926
Our titanium flange nylon lock nuts are made from high quality Grade 5 titanium which offers extreme strength with the added benefit of extreme weight saving. Titanium provides excellent corrosion resistance. All threads are machined to ISO/DIN standards.
Product Description

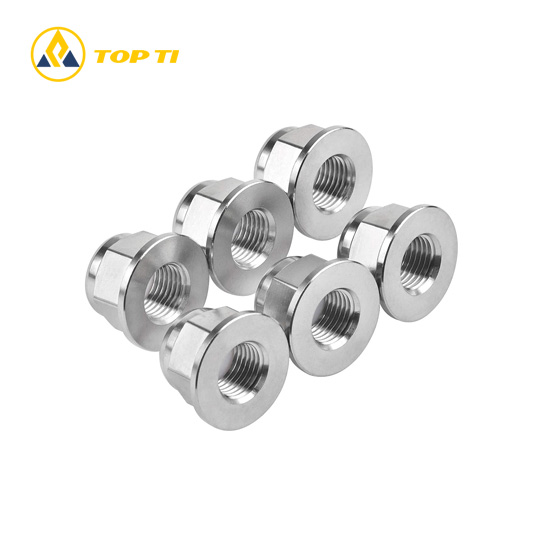

Titanium M6 M8 M10 M12 M14 Flange Nylon Lock Nuts
Material: Titanium Grade 5
Product Type: Nut
Thread Diameter: M5, M6, M8, M10, M12, etc.
Thread Pitch: 0.8mm, 1.0mm, 1.25mm, 1.50mm, 1.75mm
Drive type: Hexagon wrench
Standard: DIN 6926

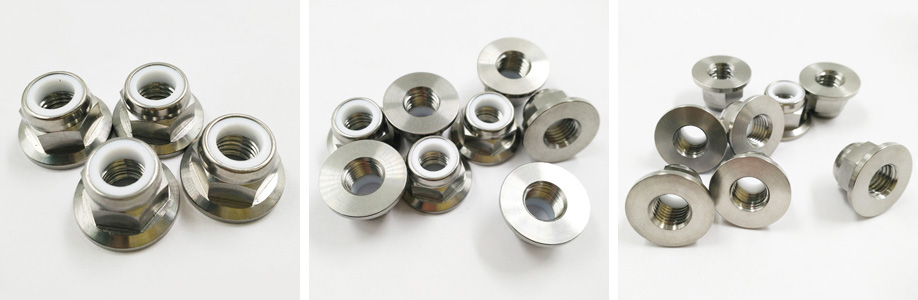

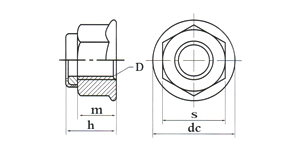

DIN 6926, Titanium Hex Flange NyLock Nuts
| Nominal Diameter
(D) |
Pitch (P) | dc | h | m | s | ||
| max | max | min | min | max | min | ||
| M5 | 0.8 | 11.8 | 7.1 | 6.74 | 4.7 | 8 | 7.78 |
| M6 | 1 | 14.2 | 9.1 | 8.74 | 5.7 | 10 | 9.78 |
| M8 | 1/1.25 | 17.9 | 11.1 | 10.67 | 7.6 | 13 | 12.73 |
| M10 | 1/1.25/1.5 | 21.8 | 13.5 | 13.07 | 9.6 | 15 | 14.73 |
| M12 | 1.25/1.5/1.75 | 26 | 16.1 | 15.67 | 11.6 | 18 | 17.73 |
| M14 | 1.5/2 | 29.9 | 18.2 | 17.68 | 13.3 | 21 | 20.67 |
| M16 | 1.5/2 | 34.5 | 20.3 | 19.46 | 15.3 | 24 | 23.67 |
| M20 | 1.5/2.5 | 42.8 | 24.8 | 23.96 | 18.9 | 30 | 29.16 |
Light weight, No rust, High-performance, Corrosion-resistant, High strength titanium bolts and nuts have many applications especially in sports, automotive, racing, aerospace and etc.
